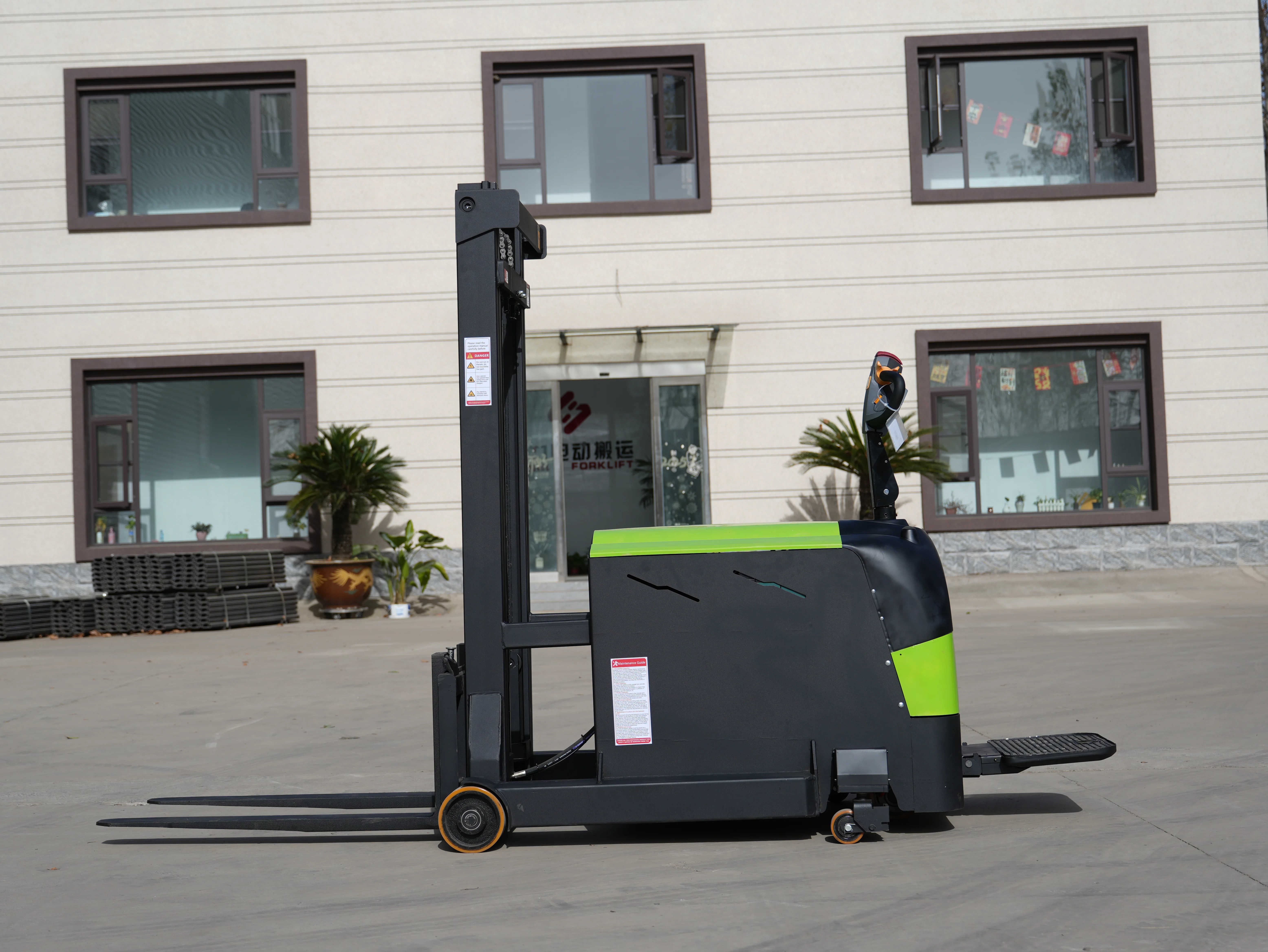

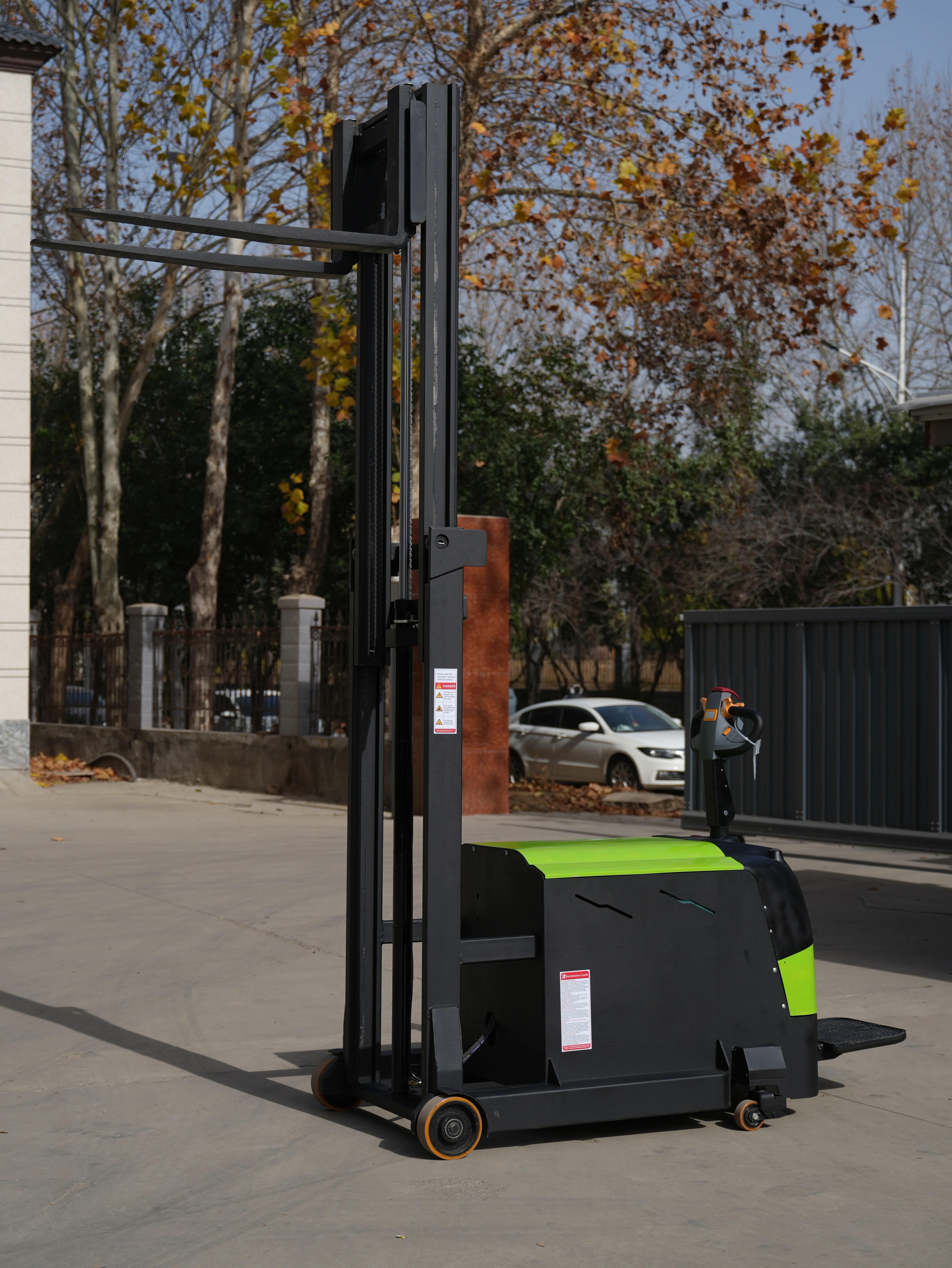

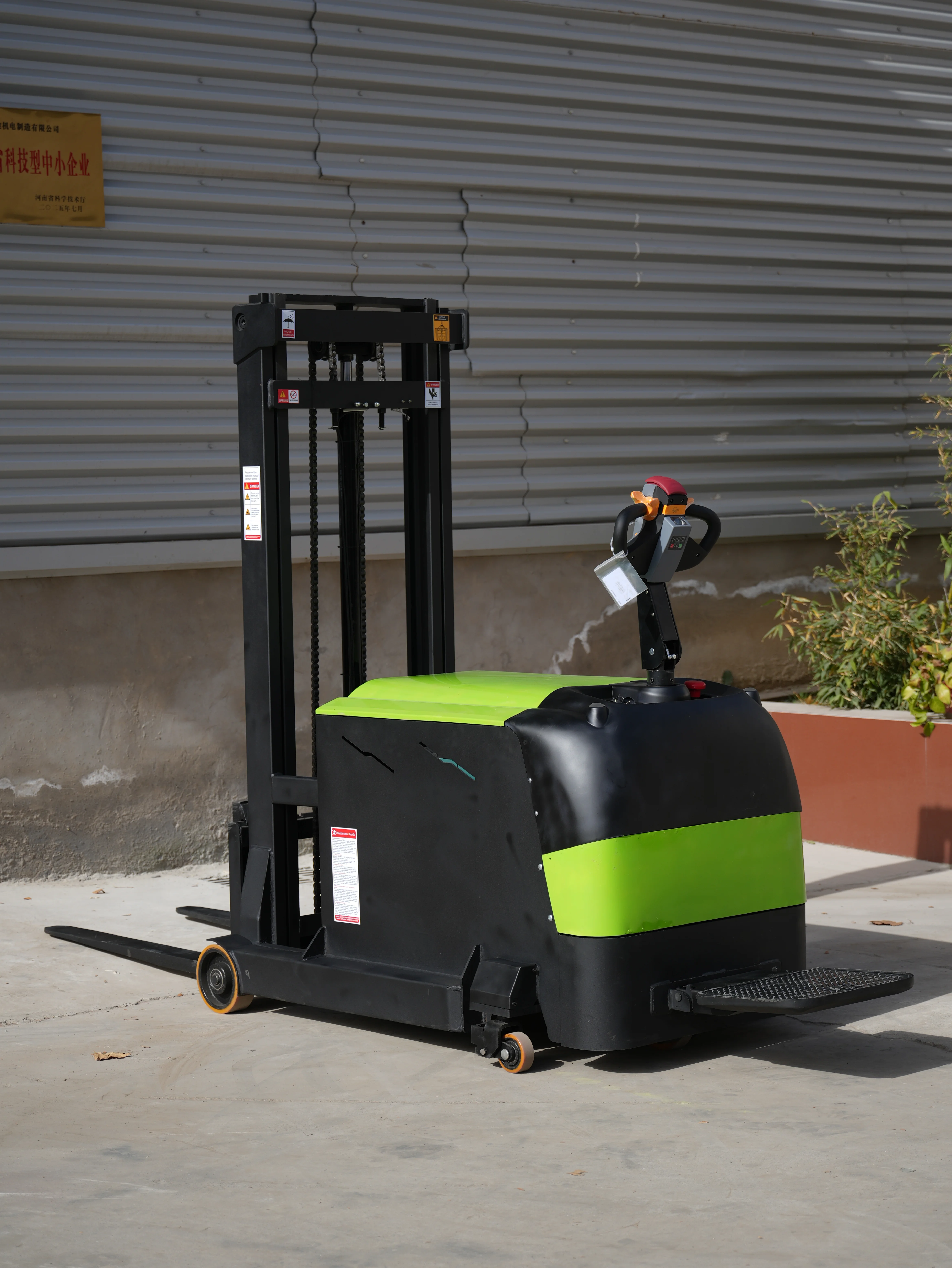

1.5 Ton Counterbalance Electric Stacker
Compact 1.5 Ton Counterbalance Electric Reach Stacker with Legless Design, 2500mm Lift Height, Stand-on Operation and 48V Battery for Efficient Warehouse Material Handling.
Legless Counterbalance Design
The counterbalance structure eliminates front support legs, allowing the stacker to handle closed-bottom pallets, machinery, molds, and other non-standard loads that traditional straddle stackers cannot access.
1.5 Ton Load Capacity
With a rated capacity of 1500kg (1.5 Ton), the stacker delivers stable lifting performance for warehouses, factories, logistics centers, and industrial applications.
Maximum 2500mm Lift Height
The electric lifting system raises loads smoothly to heights of up to 2500mm, making it suitable for medium-level racking and pallet storage.
Full Electric Stand-on Operation
Electric travel and lifting reduce operator fatigue, while the stand-on platform improves efficiency during long-distance material transportation.
Powerful Dual-Motor System
Equipped with a 2200W drive motor and a 1500W lift motor, the stacker provides reliable travel performance, smooth lifting, and consistent productivity.
Compact Body for Narrow Aisles
With an overall width of only 1023mm, the truck offers excellent maneuverability in confined warehouse spaces and narrow aisles.
Electronic Braking System
The electronic brake ensures responsive stopping performance, enhancing operational safety during frequent loading and unloading tasks.
Low-Emission Battery Power
Powered by a 48V battery system, the stacker operates quietly with zero exhaust emissions, making it ideal for indoor material handling.
- Overview
- Recommended Products
Technical Specifications
| Rated Capacity | 1500 kg |
| Operation Type | Full Electric Stand-on |
| Load Center | 500 mm |
| Overall Length (Without Forks) | 2071 mm |
| Overall Width | 1023 mm |
| Mast Lowered Height | 1596 mm |
| Fork Length | 1070 mm |
| Fork Thickness | 30 mm |
| Maximum Lift Height | 2500 mm |
| Minimum Fork Height | 30 mm |
| Power System | |
| Battery | 48V |
| Drive Motor | 2200 W |
| Lift Motor | 1500 W |
| Drive Wheel Size | Φ170 × 55 mm |
| Front Wheel Size | Φ200 × 70 mm |
| Rear Wheel Size | Φ100 × 40 mm |
| Braking System | Electronic Brake |
Product Description
The 1.5 Ton Counterbalance Electric Reach Stacker is designed for efficient pallet handling in warehouses, manufacturing plants, logistics centers, and distribution facilities. Its legless counterbalance design allows the truck to handle enclosed pallets, machinery, molds, and other special loads that cannot be accessed by conventional straddle stackers.
Featuring a 1500kg rated capacity and a maximum lifting height of 2500mm, the stacker provides stable and efficient lifting performance for medium-height storage applications. The 2200W drive motor and 1500W lift motor deliver smooth travel and reliable lifting while improving overall working efficiency.
Powered by a dependable 48V battery system, the stacker offers quiet, emission-free operation for indoor environments. Its compact 1023mm overall width ensures excellent maneuverability in narrow aisles, while the electronic braking system enhances operational safety during daily warehouse and logistics operations.
