3 Ton Electric Ride-On Pallet Truck
Heavy-duty 3T electric ride-on pallet truck for warehouses.
48V drive system delivers efficient and reliable handling.
Compact design for loading docks, factories and logistics.
Stable, safe and easy operation with standing platform.
- Overview
- Recommended Products
Technical Specifications
| Product Name | Electric Ride-On Pallet Truck |
| Rated Capacity | 3000 kg |
| Operation Type | Ride-On Electric |
| Service Weight | 420 kg |
| Fork Lowered Height | 85 mm |
| Maximum Fork Lift Height | 200 mm |
| Fork Dimensions (L × W × T) | 1200 × 160 × 50 mm |
| Fork Outside Width | 685 mm |
| Overall Width | 850 mm |
| Overall Length (Platform Folded) | 1670 mm |
| Overall Height | 1500 mm |
| Power System | |
| Drive Motor | 48V / 2000W |
| Lift Motor | 48V / 3000W |
| Gradeability (Loaded / Unloaded) | 10% / 15% |
Product Description
The tiantong 3 Ton Electric Ride-On Pallet Truck is engineered for efficient horizontal pallet transportation in warehouses, factories, logistics centers, supermarkets, and distribution facilities. With a rated load capacity of 3000kg, it provides reliable performance for demanding material handling applications while improving productivity and reducing operator fatigue.
Powered by a 48V 2000W drive motor and a 48V 3000W lifting motor, the truck delivers strong driving force, smooth lifting performance, and excellent operating efficiency. The ride-on platform allows operators to travel comfortably over longer distances, making it ideal for intensive warehouse operations.

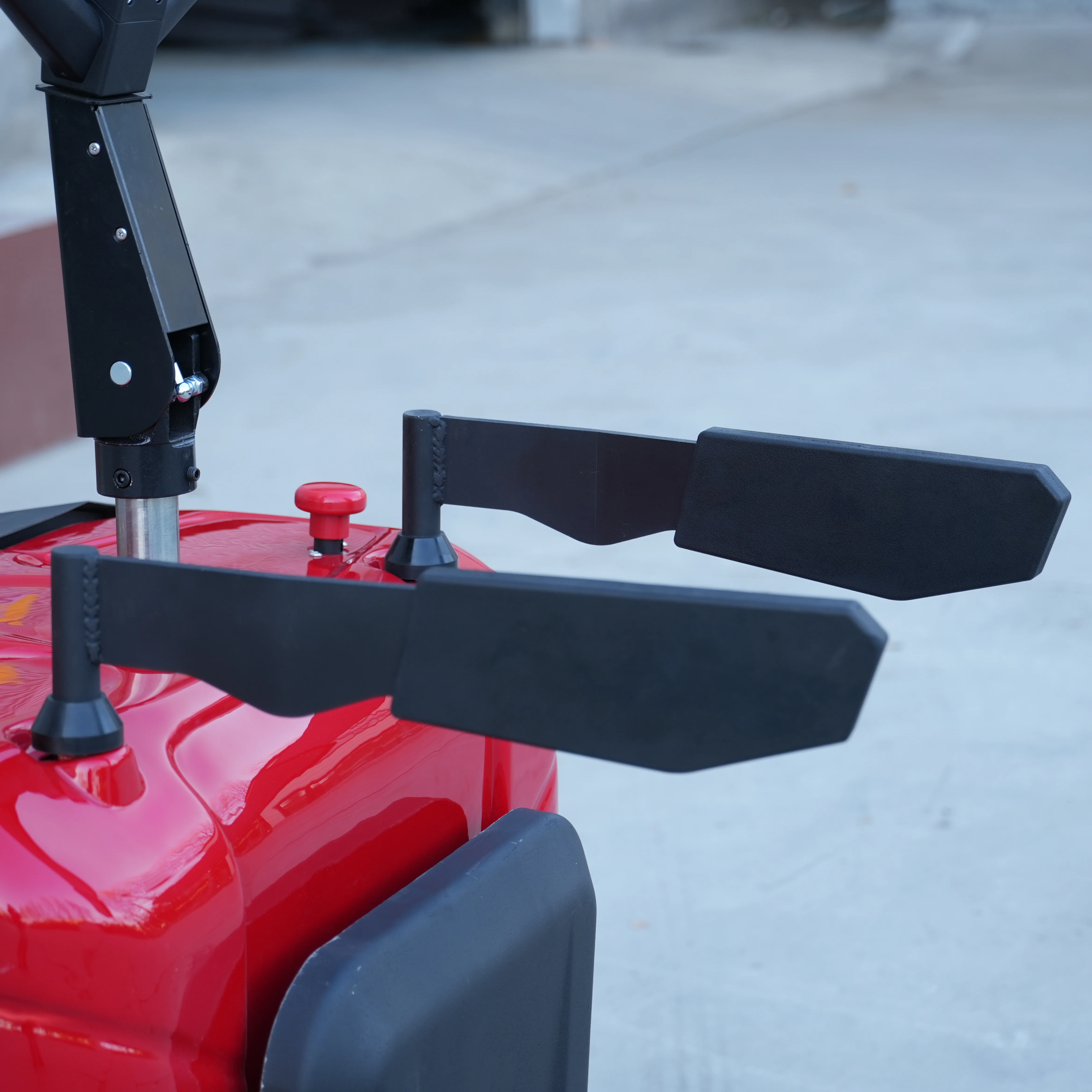

Designed with safety and durability in mind, the pallet truck features an emergency stop button, reverse safety switch, protective arms, and high-strength manganese steel forks. Its compact dimensions and low-profile fork design enable easy maneuverability in narrow aisles while ensuring stable pallet transportation across various industrial environments.
