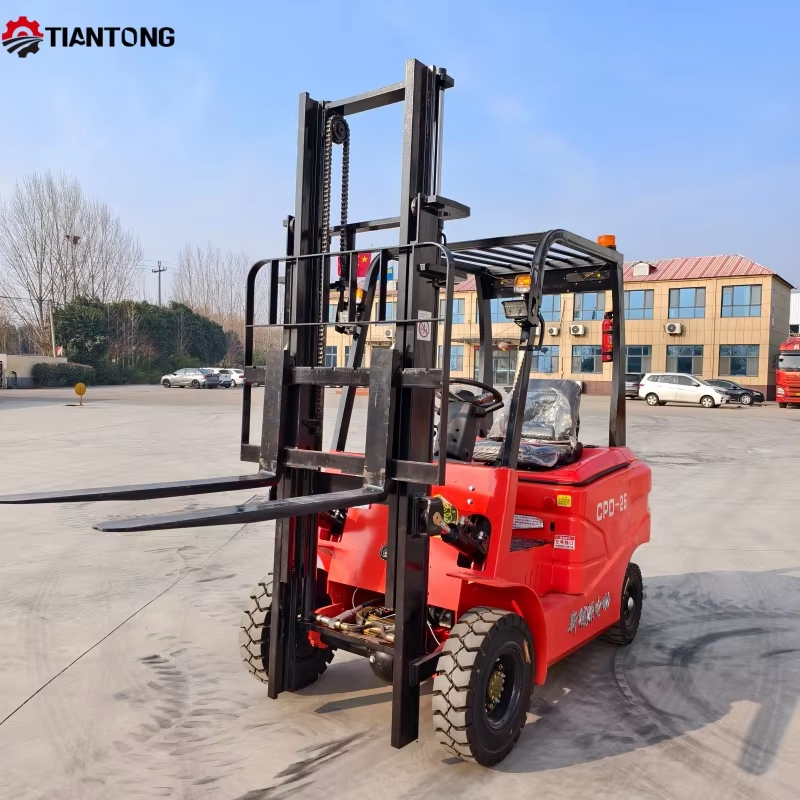

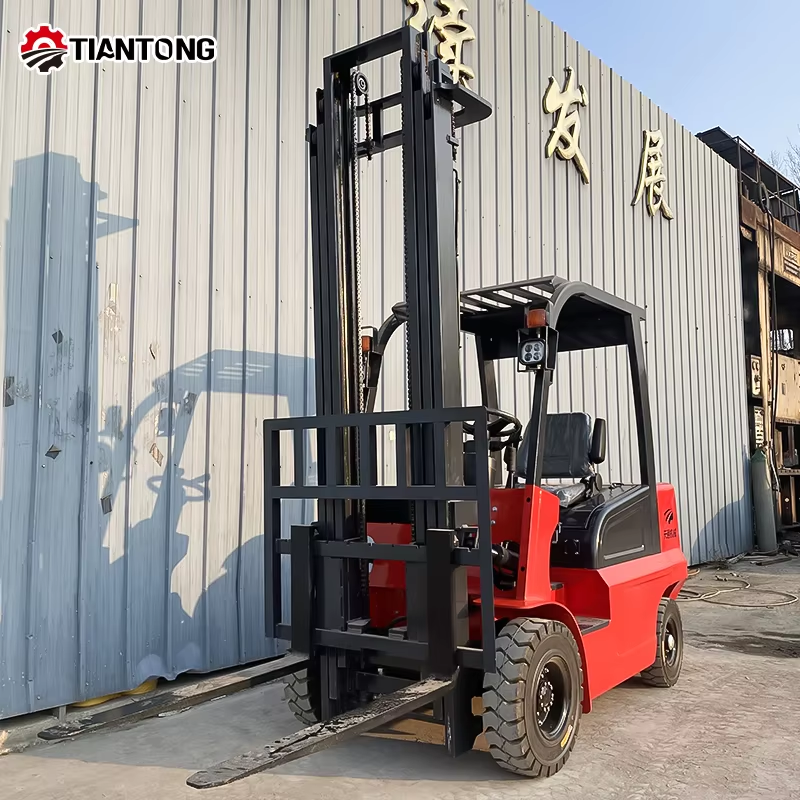

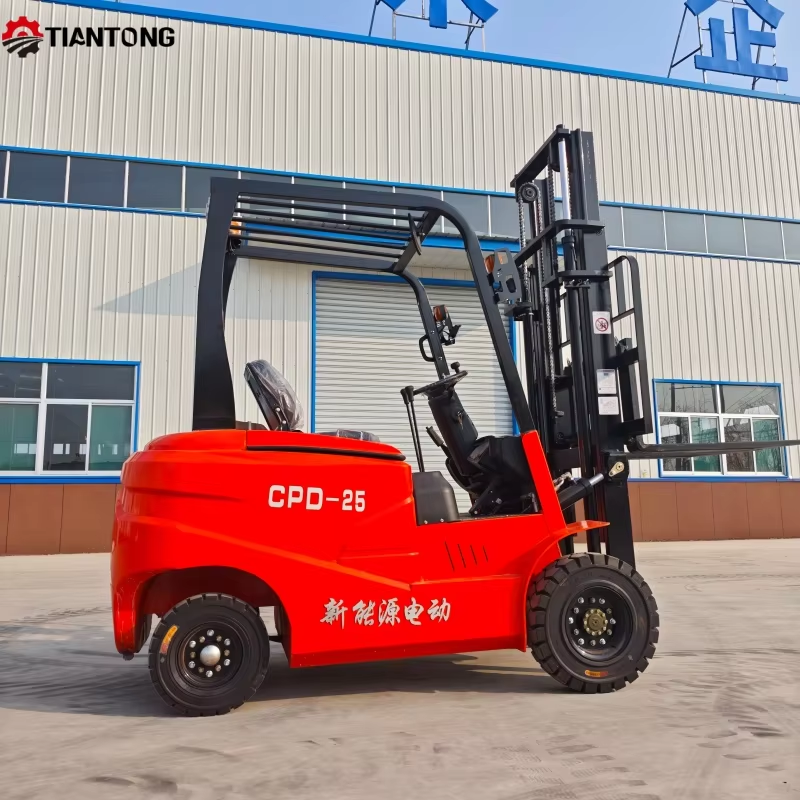

3Ton Four Wheel Electric Forklift Truck H Type Mast for Heavy Load
3 ton four wheel electric forklift truck with thickened H-type mast and precision forged forks. Reinforced chains for safer loading. Limited stock – request your quote today!
- Overview
- Recommended Products
| TECHNICAL PARAMETERS | |
| Maximum Lifting Capacity | 3000 kg |
| Length (excluding forks) | 2.55 m |
| Width | 1.2 m |
| Height | 2.1 m |
| Machine Net Weight | 4000 kg |
| Lifting Height | 3 m (customizable) |
| Chassis Material | Reinforced heavy-duty steel frame, H-section steel 150 |
| ELECTRICAL SYSTEM | |
| Drive Motor | 7500 W dual AC motors |
| Voltage | 60 V (adjustable based on working hours) |
| Wiring | Main cables: 25 mm² national standard |
| Battery | 10 x 70 Ah dry-cell batteries (adjustable based on working hours) |
| Lighting & Signals | LED headlight, left/right turn signals, brake light, running light, instrument panel, electric horn, seat belt, etc. |
| CHASSIS SYSTEM | |
| Front Axle | Cast steel front axle |
| Tires | Front: 650-10 (solid tires); Rear: 500-8 (solid tires) |
| Rear Axle | Cast steel rear axle |
| Braking System | Hand brake, hydraulic oil brake |
| OTHER CONFIGURATIONS | |
| Lift Cylinder | Reinforced sealed dual cylinders, genuine Tongheli original parts, lifetime leak-proof guarantee |
| Fork Length | 1.07 m forged fork |
| Fork Dimensions | 1070 × 120 × 40 mm |
| Mast Material | Reinforced heavy-duty Laigang steel, thickness 20–30 mm |
| Chain / Sprocket | Multi-leaf chain, high load capacity; sprocket shaft uses 40 mm diameter heavy-duty sprocket |
| Steering Type | Hydraulic power steering |
| Turning Radius | 180° in-place steering (zero-turn) |
| Charging Time | 6–7 hours (220 V) |
| Operating Time | 4–8 hours |
| Climbing Angle | 15° |
| Included Accessory | Auto-shutoff battery charger |
Product Description
The electric forklift truck plays a key role in heavy-duty material handling. This 3-ton four-wheel electric forklift truck features a four-wheel design for greater stability during travel and turning, making it ideal for factories, logistics centers, and warehouses with high-frequency heavy loading.
Structural strength is the core advantage of this electric forklift truck. The thickened H-type mast frame is reinforced with front and rear top beams, while the chains are thickened and strengthened to prevent frame deformation when lifting heavy loads. The precision forged one-piece high-strength fork is safe, stable, and flexibly adjustable for more efficient operation. Thickened plates are used throughout key parts of the vehicle for guaranteed quality.
Power and drivetrain – This electric forklift truck is equipped with a high-power motor delivering strong performance to handle a 3-ton rated load. The heavy-duty drive shaft, combined with a final reduction transmission and wheel-type planetary reducer, ensures high transmission efficiency and smooth torque output, providing better climbing and heavy-load starting ability. The reinforced cylinder piston rod, paired with imported cylinder seals, ensures no oil leakage over long-term use.
Battery and range – This electric forklift truck can be equipped with a Chaowei lithium battery, supporting high-capacity long-range battery configurations, with预留 for adding additional lithium batteries. The charging display shows real-time charging status, allowing operators to monitor battery levels at any time. Multiple intelligent protections (overcurrent and overvoltage protection) ensure battery and motor safety.
Tires and adaptability – Wear-resistant solid rubber tires are slip-resistant, durable, and offer a long service life, adapting to concrete, epoxy, and outdoor paved surfaces. The four-wheel design further improves overall stability, especially suitable for uneven floors or sloped sites.
Operation and comfort – This electric forklift truck is easy to operate and available factory-direct, reducing procurement costs. The comfortable, spacious seat is adjustable forward and backward, reducing fatigue during long shifts. Custom body color and logo printing are supported to match your brand image.
If you are looking for a 3-ton four-wheel electric forklift truck with solid structure, strong power, and long range, contact us today for detailed configurations and a quote.
Advantages
1. High Efficiency, Low Noise & Zero Emission
Powered by electric drive with zero tailpipe emissions, meeting environmental standards. Significantly lower noise than diesel forklifts, ideal for indoor warehouses and nighttime operations.
2. Easy Maintenance & Quick Refueling
Simpler electric structure means fewer daily maintenance items, reducing downtime and service costs. Supports quick refueling for continuous high-efficiency handling.
3. Flexible Customization
Customizable models, body colors, logos, and optional configurations available. Contact customer service for exclusive color customization to match your brand or specific working conditions.
4. Hydraulic Lift + Adjustable Up/Down + Smooth Operation
Features a hydraulic lift system with vertically adjustable forks, delivering jerk-free lifting and lowering. Perfect for multi-tier racking and precision cargo handling.
